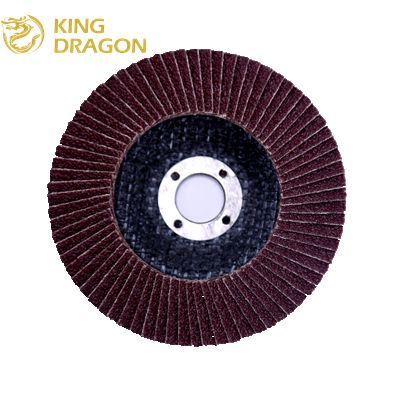

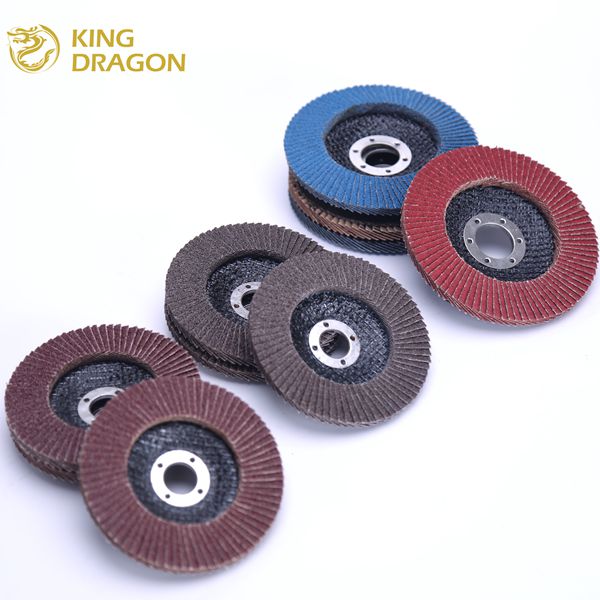

Flap Disc

Backing Appearance:
Glassfiber with Black Paper
Glassfiber with Non-woven Cloth
Glassfiber with Net
Plastic Backing
Backing Type:
Grain Size:
40# - 360#
Facebook Twitter Google+ LinkedIn

Introduction

  Item No.: KD9110



Abrasive Grain

Base

Grit Gange

Dia.

Hole Dia.

Max R.P.M.

Types

Aluminum Oxide

Glassfiber

P40--P400

4" (100mm)

5/8" (16mm)

15200

4.5" (115mm)

7/8" (22mm)

13300

5" (125mm)

7/8" (22mm)

12200

6" (150mm)

7/8" (22mm)

12200

7" (180mm)

7/8" (22mm)

8500







 Item No.: KD9111



Abrasive Grain

Base

Grit Gange

Dia.

Hole Dia.

Max R.P.M.

Types

Aluminum Oxide

Plastic

P40--P400

4" (100mm)

5/8" (16mm)

15200





4.5" (115mm)

7/8" (22mm)

13300

5" (125mm)

7/8" (22mm)

12200

6" (150mm)

7/8" (22mm)

12200

7" (180mm)

7/8" (22mm)

8500







 Item No.: KD9120



Abrasive Grain

Base

Grit Gange

Dia.

Hole Dia.

Max R.P.M.

Types

Heated  Aluminum Oxide

Glassfiber

P40--P400

4" (100mm)

5/8" (16mm)

15200

4.5" (115mm)

7/8" (22mm)

13300

5" (125mm)

7/8" (22mm)

12200

6" (150mm)

7/8" (22mm)

12200

7" (180mm)

7/8" (22mm)

8500





Item No.: KD9121



Abrasive Grain

Base

Grit Gange

Dia.

Hole Dia.

Max R.P.M.

Types

Heated  Aluminum Oxide

Plastic

P40--P400

4" (100mm)

5/8" (16mm)

15200





4.5" (115mm)

7/8" (22mm)

13300

5" (125mm)

7/8" (22mm)

12200

6" (150mm)

7/8" (22mm)

12200

7" (180mm)

7/8" (22mm)

8500





Item No.: KD9130





Abrasive Grain

Base

Grit Gange

Dia.

Hole Dia.

Max R.P.M.

Types

Zirconia Oxide

Glassfiber

P36--P120

4" (100mm)

5/8" (16mm)

15200

4.5" (115mm)

7/8" (22mm)

13300

5" (125mm)

7/8" (22mm)

12200

6" (150mm)

7/8" (22mm)

12200

7" (180mm)

7/8" (22mm)

8500



Item No.: KD9140





Abrasive Grain

Base

Grit Gange

Dia.

Hole Dia.

Max R.P.M.

Types

Ceramic Oxide

Glassfiber

P36--P120

4" (100mm)

5/8" (16mm)

15200

4.5" (115mm)

7/8" (22mm)

13300

5" (125mm)

7/8" (22mm)

12200

6" (150mm)

7/8" (22mm)

12200

7" (180mm)

7/8" (22mm)

8500



Parameter



  Outside  Dia.    Backing Dia.

 Arbor   Hole Dia.

Grain

  Max.R.P.M. Pcs/Ctn



 G.W. (kgs)

N.W. (kgs)

Ctn Size(cm)
  4" 100mm

   75mm/88mm

        90mm

5/8" 16mm

P40

15200       200       14

13

53X21X23

P60-80

15200

200

12

11

53X21X23

P120-400

15200

200

10

9

53X21X23

4 1/2" 115mm

105mm

7/8" 22mm

P40

13300

200

18

17

59X24X24

P60-80

13300

200

17

16

59X24X24

P120-400

13300

200

15

14

59X24X24

5" 125mm

115mm

7/8" 22mm

P40

12200

200

21

20

64X26X24

P60-80

12200

200

20

19

64X26X24

P120-400

12200

200

18

17

64X26X24

6" 150mm

140mm

7/8" 22mm

P40

12200

150

21

20

48X31X30

P60-80

12200

150

20

19

48X31X30

P120-400

12200

150

18

17

48X31X30

  7" 180mm

170mm

  7/8" 22mm

P40

8500

100

25

24

37X37X30

P60-80

8500

100

22

21

37X37X30

P120-400

8500

100

20

19

37X37X30






Applicable Industries:


■ Chemical and processing industries ■ Fitting and container construction

■ Steelworks ■ Foundries ■Tool and mould construction

■ Pipeline construction ■Dockyards ■ Automotive industry

■ Steel construction, locksmiths

■ Aviation and aerospace, gas turbine construction and repair

■ Machine engineering










Grit Recommended:


Grit

Spec.

Applications

Suggested Progress

P60 P80

Coarse

For removal and leveling of moderate surface imperfections

■Derusting ■Deburring

P100-- P240

Medium

For smoothing and light removal on bare surfaces

■GrindingCleaning

P320 P400

Fine

For bare surface cleaning and finishing

Cleaning ■Polishing

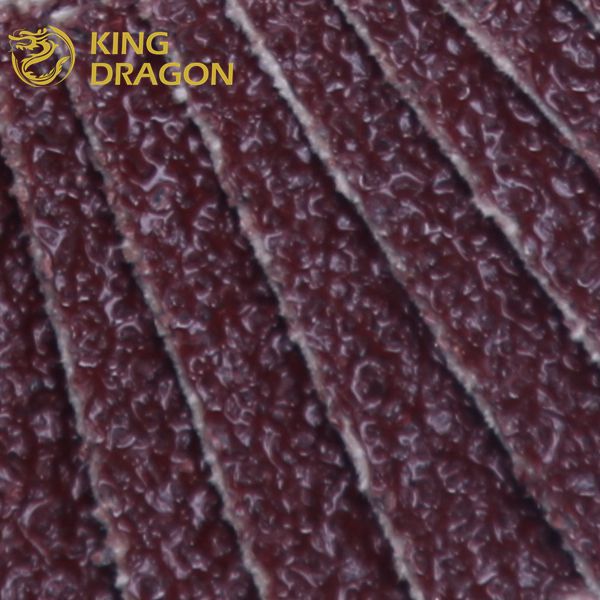

Introduction for Abrasives :


A/O: Alumimun Oxide

Aluminum Oxide grain which has high efficiency grinding performance. Cotton cloth base synchronous consumption fast, does not burn the workpiece.Glassfiber backing and plastic backing available.

With efficient grinding and polishing effect, the product is windly applied in the metal, stainless steel, wood, etc


C/O: Ceramic Oxide

With high quality ceramic grinding grain, which can quickly and efficiently finish the surface treatment of the workpiece. It has excellent effect for polishing the stainless steel.Glassfiber backing and plastic backing available.


Z/A: Zirconia Alumia

For grinding the stainless steel workpiece, the zirconia grain with outstanding effect and high efficiency. In addition to stainless steel, it is also used for the metals.Glassfiber backing available.


Safety Instructions

 Instructions:
1. Please try to choose operation indoors environment which without clutter phenomenon. The user should also concentrate on the operation to avoid an accident. If use it at outdoor, try to choose a quiet environment.
2. During the grinding process, the workpiece should be kept parallel to the working water level.

3. The user's power should be evenly distributed when operation. Never suddenly heavy and lightly.

4. Avoid moving or slipping the workpiece during grinding.





Warning:

1. Must wear dustproof mask and goggles  when working.

2. Never exceed the maximum safe speed.

3. Discs must be mounted correctly and used with metal guards and goggles.
