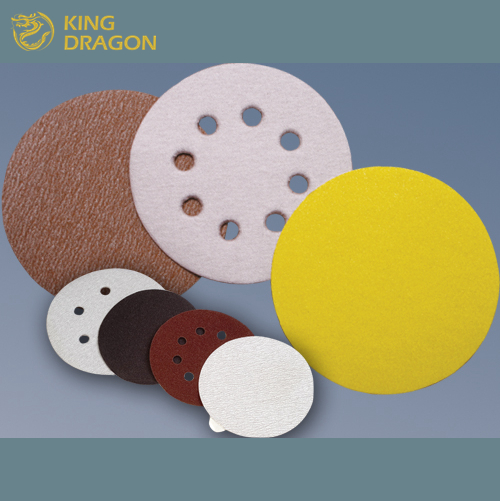

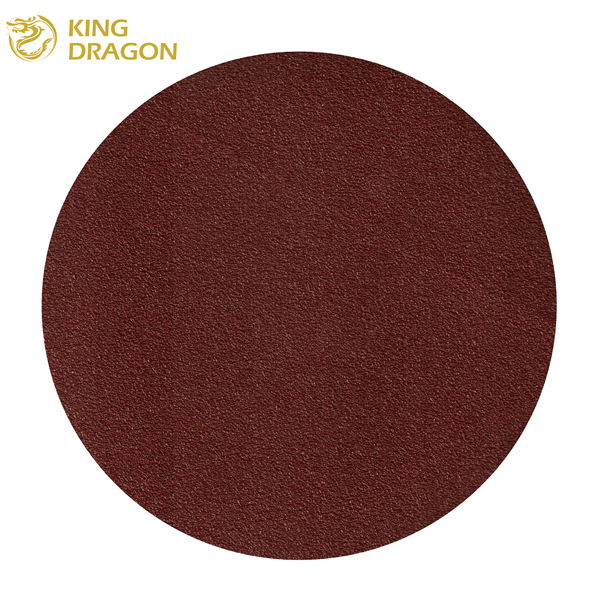

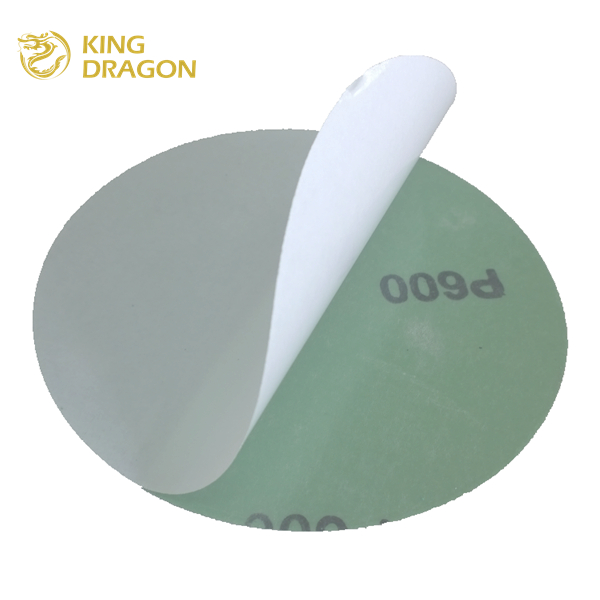

PSA Disc

Outside Dia.:
50mm/75mm/100mm/115mm/125mm
150mm/180mm/200mm/230mm/305mm

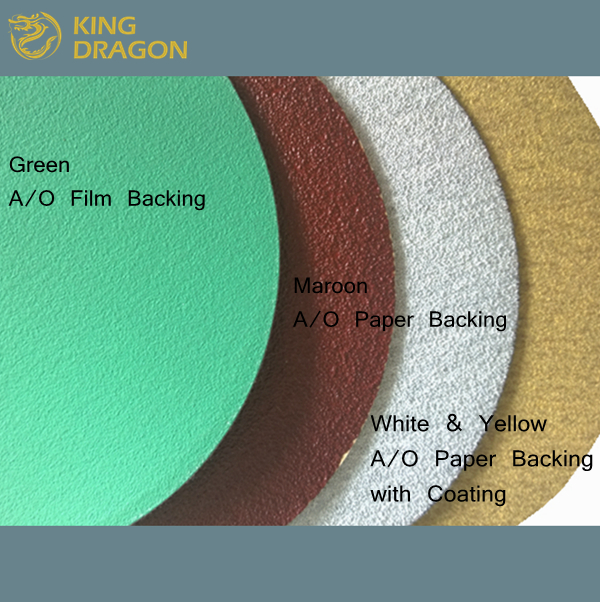

Backing Appearance:
Paper/Film
Grain Size:
1000#/1500#/2000#
220#/240#/320#/400#/600#/800#
60#/80#/100#/120#/150#/180#
Color:
Maroon/Green/Yellow/White/Gray
Facebook Twitter Google+ LinkedIn

Introduction



   Item No.: KD8210

Abrasive Grain

Base

Coating

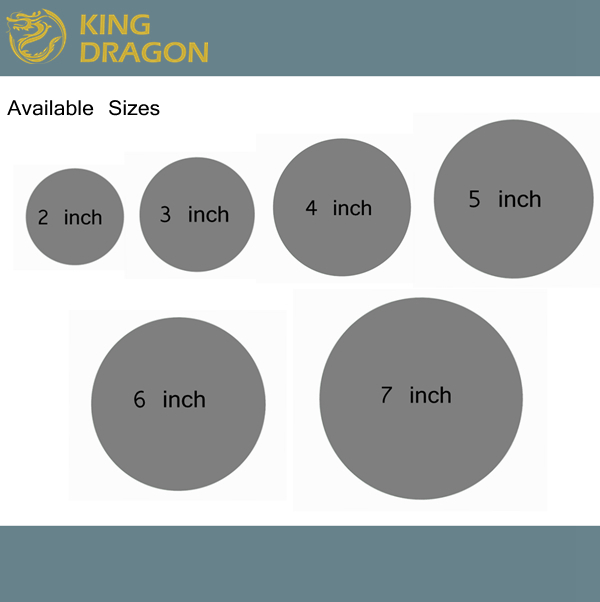

Available Sizes

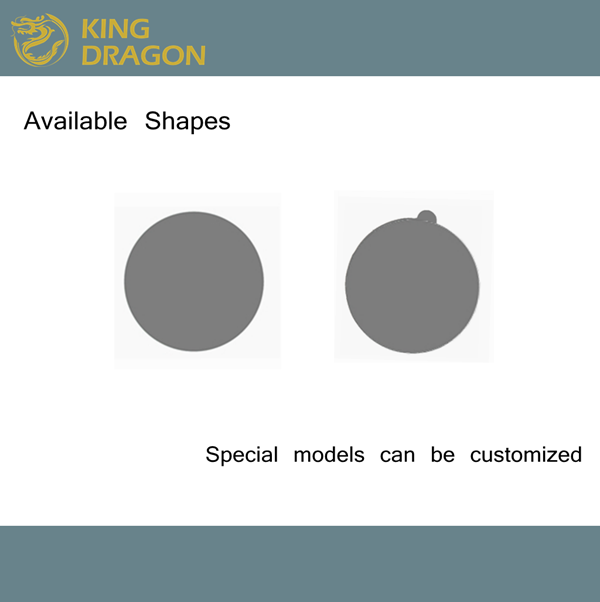

Available Shapes

Aluminum Oxide

Film

Open Coated

Special Coated

2"/3"/4"/4.5"/5"/6"/7"/9"/12"

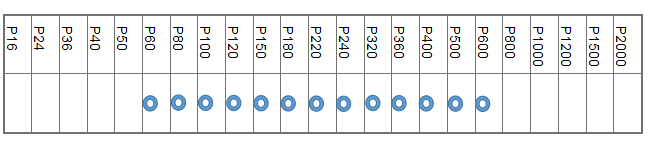

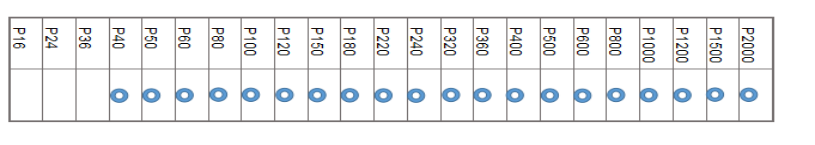

 Main Grit



Item No.: KD8220

Abrasive Grain

Base

Coating

Available Sizes

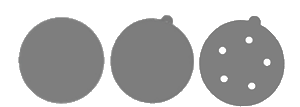

Available Shapes

Aluminum Oxide



D-weight Paper



E-weight Paper





Semi-Open Coated



Special Coated



2"/3"/4"/4.5"/5"/6"/7"/9"/12"

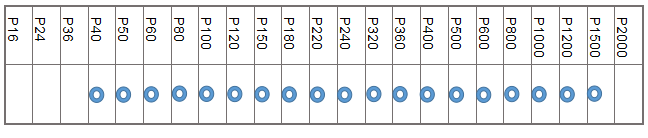

Main Grit







Item No.: KD8230

Abrasive Grain

Base

Coating

Available Sizes

Available Shapes

Aluminum Oxide



D-weight Paper



E-weight Paper





Semi-Open Coated



Special Coated



2"/3"/4"/4.5"/5"/6"/7"/9"/12"



Main Grit





Item No.: KD8240



Abrasive Grain

Base

Coating

Available Sizes

Available Shapes

Aluminum Oxide



D-weight Paper



E-weight Paper







Semi-Open Coated





2"/3"/4"/4.5"/5"/6"/7"/9"/12"



Main Grit



Parameter



General Application of Grit



Grit

Spec.

Applications

60#80#

Coarse

For removal and leveling of moderate surface imperfections

100#120#

Medium

For smoothing and light removal on bare surfaces

150#180#

Fine

For bare surface cleaning and finishing

220#240#320#400#

Very Fine

For primer and sealer sanding, and other very fine sanding of bare surfaces.

600#800#1000#1500#2000#

Extra Fine

Between coatings, primer and sealer sanding




   Application of Hook and Loop Sanding Disc



Item

Recommand

Grit Range

       Work Process



Coarse (40#-150#)

.Poly-putty grinding

.Remove paint

.Automotive putty grinding

.Wall putty grinding

Medium& Fine

(180#-2000#)

.Primer/Base coat grinding

.Paint surface grinding



40#-600#

.Hardwood grinding

.Grinding of automotive body sheet metal parts

.Metal grinding

.Plastic grinding




 Recommended Sanders for 5" Hook & Loop Disc





Introduction for Abrasives :


A/O: Alumimun Oxide

Aluminum Oxide grain which has high efficiency grinding performance. Cotton cloth base synchronous consumption fast, does not burn the workpiece.Glassfiber backing and plastic backing available.

With efficient grinding and polishing effect, the product is windly applied in the metal, stainless steel, wood, etc


C/O: Ceramic Oxide

With high quality ceramic grinding grain, which can quickly and efficiently finish the surface treatment of the workpiece. It has excellent effect for polishing the stainless steel.Glassfiber backing and plastic backing available.


Z/A: Zirconia Alumia

For grinding the stainless steel workpiece, the zirconia grain with outstanding effect and high efficiency. In addition to stainless steel, it is also used for the metals.Glassfiber backing available.


Safety Instructions

 Instructions:
1. Please try to choose operation indoors environment which without clutter phenomenon. The user should also concentrate on the operation to avoid an accident. If use it at outdoor, try to choose a quiet environment.

2. During the grinding process, the workpiece should be kept parallel to the working water level.

3. The user's power should be evenly distributed when operation. Never suddenly heavy and lightly.

4. Avoid moving or slipping the workpiece during grinding.




Warning:

1. Must wear dustproof mask and goggles  when working.

2. Never exceed the maximum safe speed.

3. Discs must be mounted correctly and used with metal guards and goggles.
