Felt Circular Disc

Hole Dia.:
16mm/22mm
Outside Dia.:
100mm/115mm/125mm
Backing Type:
Color:
White
Base Material:
Plastic
Grade:
Standard
High Purity
Facebook Twitter Google+ LinkedIn

Introduction


 Item No.: KD4120



Abrasive   Material

Backing

 Type

Color-Grit

Outer Dia.

Arbor Hole Dia.

Felt Sheet Thickness

Max R.P.M.

 Wool Felt

Plastic







White-Super Fine



4”(100mm)

16mm

8mm/10mm/12mm

 12000

4-1/2"(115mm)

22mm

8mm/10mm/12mm

12000

5”(125mm)

22mm

8mm/10mm/12mm

12000





Item No.: KD4121


Abrasive   Material

Backing

 Type

Color-Grit

Outer Dia.

Arbor Hole Dia.

Felt Sheet Thickness

Max R.P.M.

 Wool Felt

Plastic







White-Super Fine



4”(100mm)

16mm

8mm/10mm/12mm

 12000

4-1/2"(115mm)

22mm

8mm/10mm/12mm

12000

5”(125mm)

22mm

8mm/10mm/12mm

12000







Item No.: KD4122

Abrasive   Material

Backing

 Type

Color-Grit

Outer Dia.

Arbor Hole Dia.

Felt Sheet Thickness

Max R.P.M.

 Wool Felt

Plastic







White-Super Fine



4”(100mm)

16mm

8mm/10mm/12mm

 12000

4-1/2"(115mm)

22mm

8mm/10mm/12mm

12000

5”(125mm)

22mm

8mm/10mm/12mm

12000

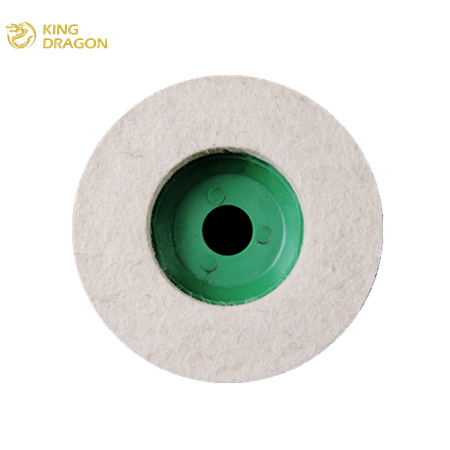

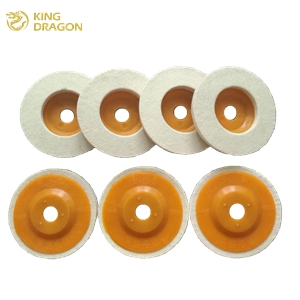

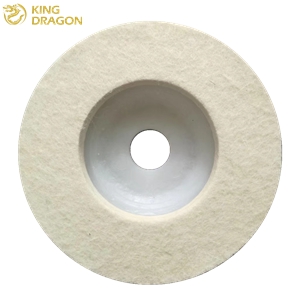

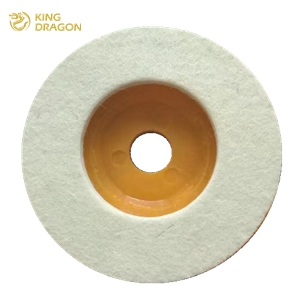

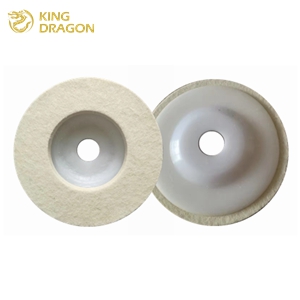

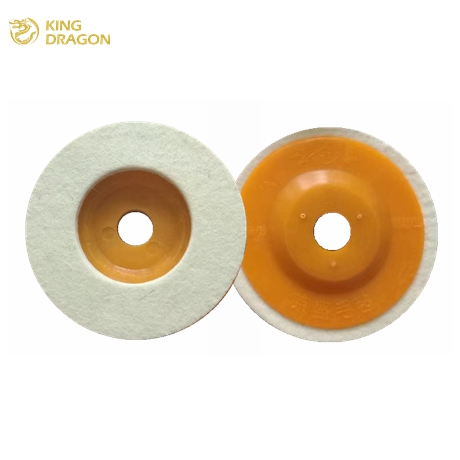

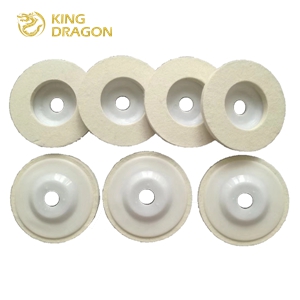

The wool felt disc is dedicated to polishing or repairing the different materials of abrasion, such as glass, ceramics, stone, metal, plastic and jewelry.

Which is the necessary product for glass polishing, used in the final process of glass polishing.

It can be used to remove glass surface scratches also, increase the effect of light.

The disc suitable for straightening machine and beveling machine.



The products can use in following industries:

■ Glass industry

■ Foundries

■Tool and mould construction

■ Automotive industry

■ Steel construction, locksmiths

■ Steelworks



Applications:

■ Polishing

■ Cleaning





Parameter

Outside Dia.

Backing Dia.

Hole Dia.

Max. R.P.M.

Pcs/Ctn

G.W.(kgs)

N.W.(kgs)



Ctn Size(cm)





4" 100mm



90mm

5/8" 16mm

15200

100

 14

 13

 53x21x23



4 1/2" 115mm



 105mm

7/8" 22mm

 13300

100

 15

 14

 53x21x23



 5" 125mm



 115mm

 7/8" 22mm

 12200

100

 16

 15

 53x21x23

Safety Instructions

 Instructions:
1. Please try to choose operation indoors environment which without clutter phenomenon. The user should also concentrate on the operation to avoid an accident. If use it at outdoor, try to choose a quiet environment.
2. During the grinding process, the workpiece should be kept parallel to the working water level.

3. The user's power should be evenly distributed when operation. Never suddenly heavy and lightly.

4. Avoid moving or slipping the workpiece during grinding.





Warning:

1. Must wear dustproof mask and goggles  when working.

2. Never exceed the maximum safe speed.

3. Discs must be mounted correctly and used with metal guards and goggles.
