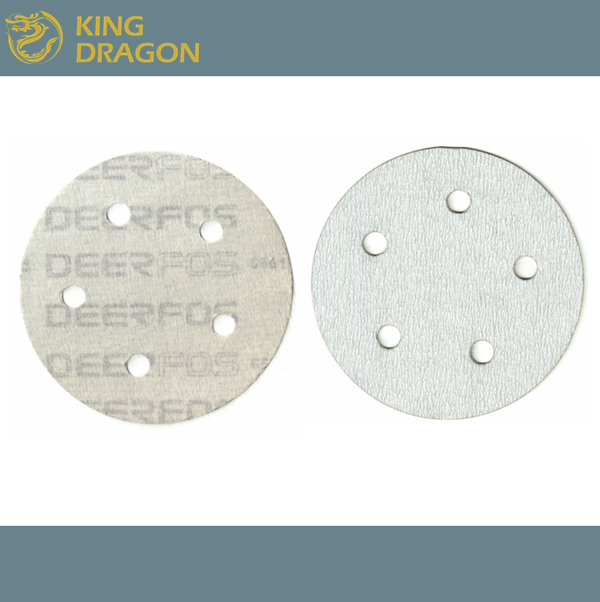

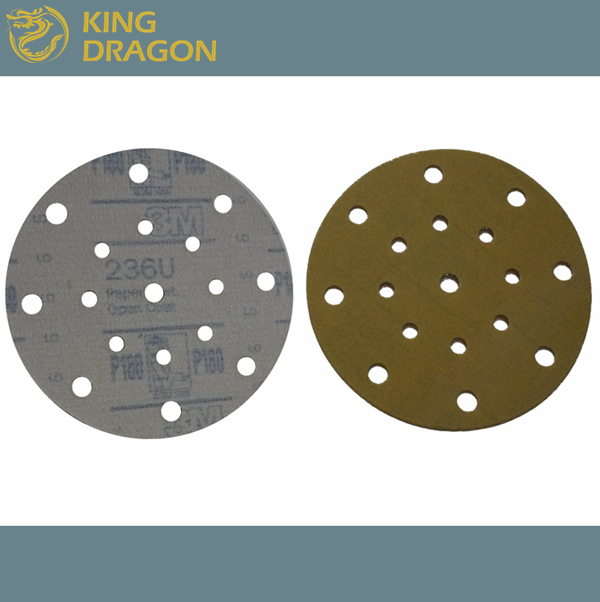

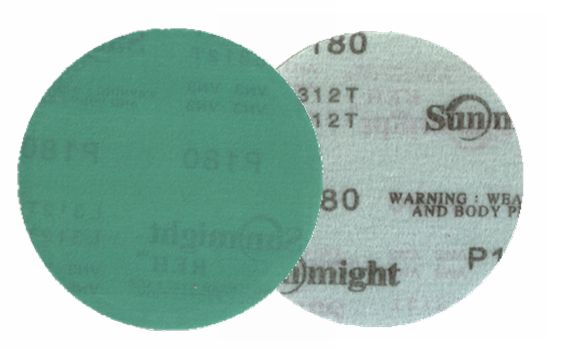

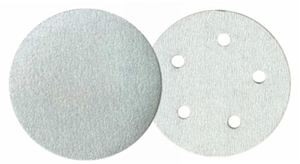

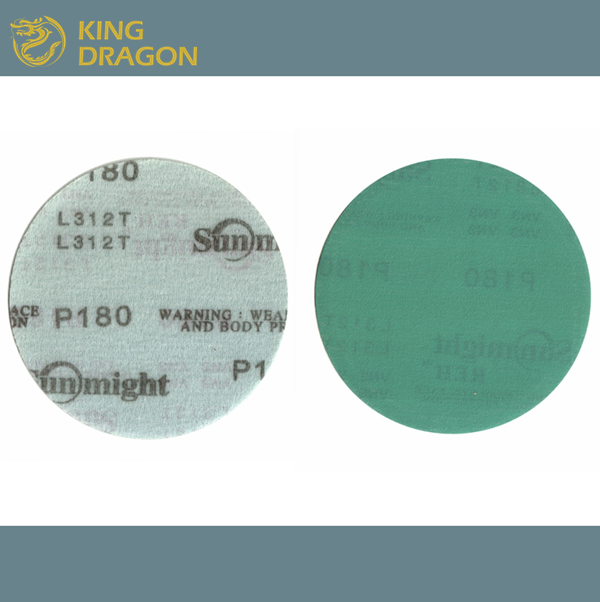

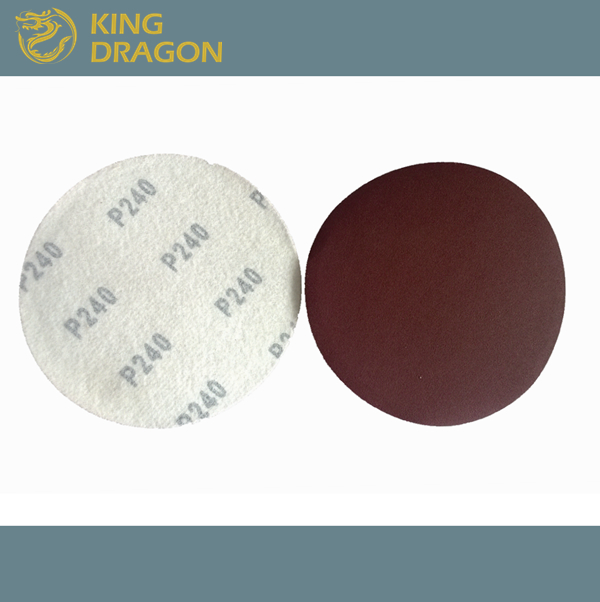

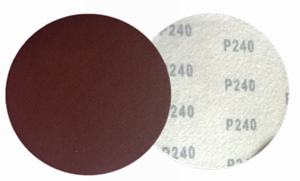

Hook and Loop Disc

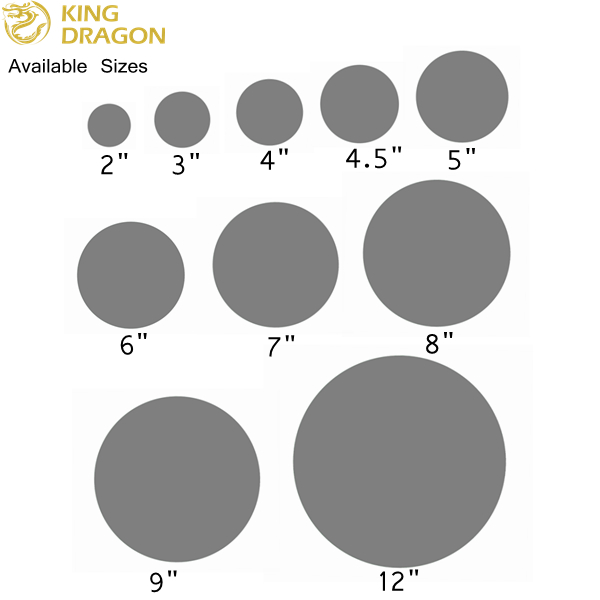

Outside Dia.:
50mm/75mm/100mm/115mm/125mm
150mm/180mm/200mm/230mm/305mm
Backing Appearance:
Paper/Film
Grain Size:
1000#/1500#/2000#
220#/240#/320#/400#/600#/800#
60#/80#/100#/120#/150#/180#
Color:
Maroon/Green/Yellow/White/Gray
Facebook Twitter Google+ LinkedIn

Introduction




Application of Hook and Loop Sanding Disc



 Item

 Recommand Grit Range

 Work Process

   Coarse (40#-150#)   .Poly-putty grinding
  .Remove paint
  .Automotive putty grinding
  .Wall putty grinding

  Medium& Fine

  (180#-2000#)

  .Primer/Base coat grinding
  .Paint surface grinding



  40#-600#

  .Hardwood grinding
  .Grinding of automotive body sheet metal parts
  .Metal grinding
  .Plastic grinding












   Item No.: KD8110



 Grain

 Base

 Coating

Size

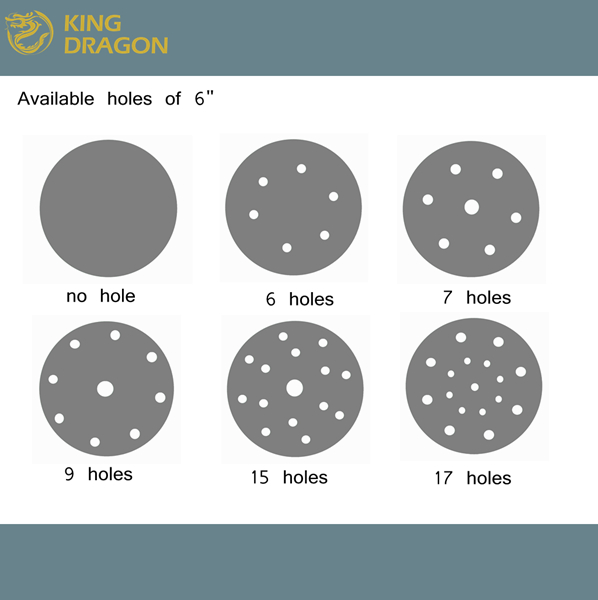

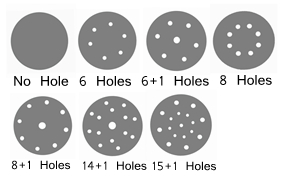

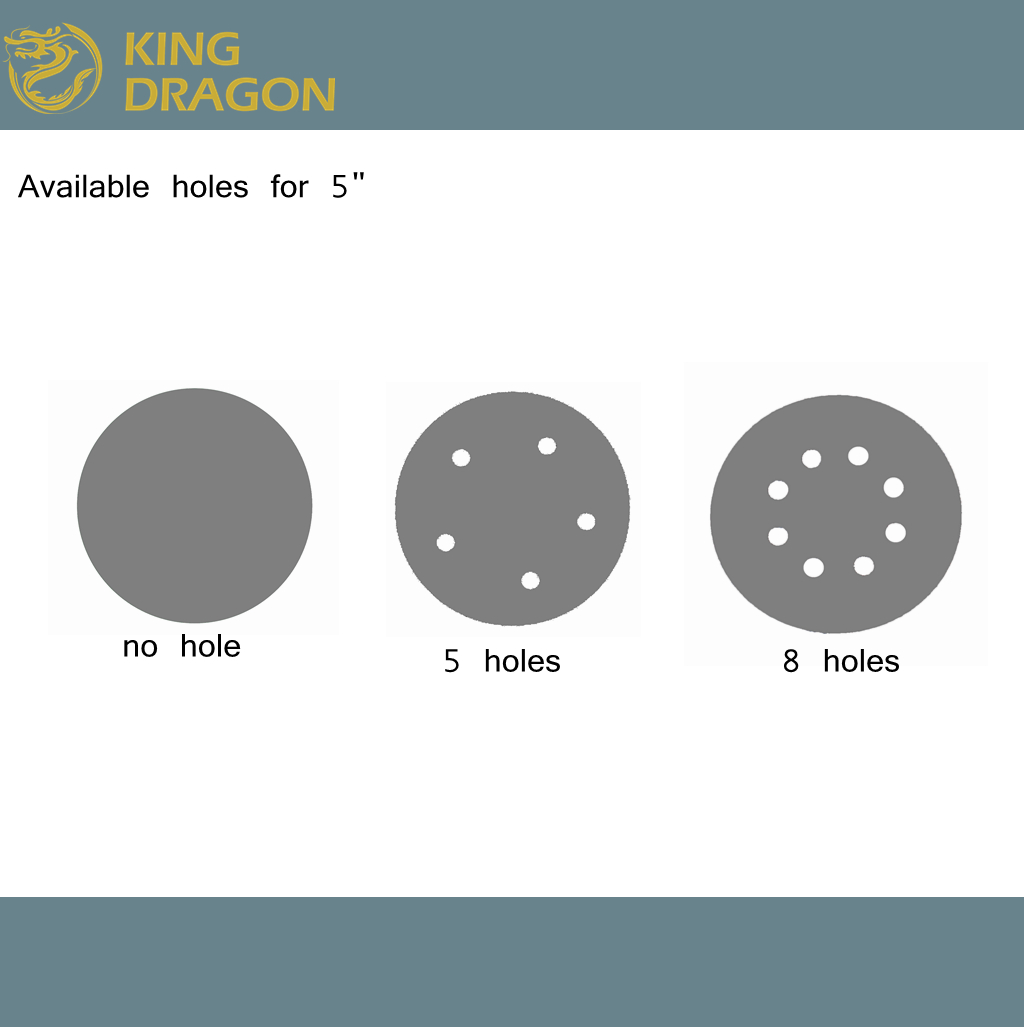

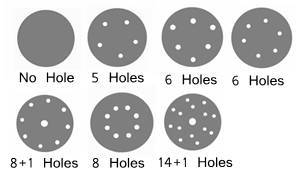

 Availabel Holes

 A/O  Film  Open Coated/Special Coated 2"/3"/4"/4.5"7"/9"/12"

 Open Coated

 Special Coated

 5"
 6"

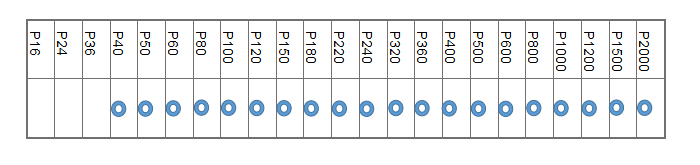

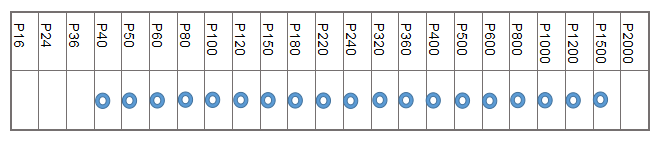

 Main Grit







Item No.: KD8120



Grain

Base

Coating

Size

Availabel Holes

A/O

  D-weight Paper

  E-weight Paper

  Semi-Open Coated

  Special Coated

2"/3"/4"/4.5"7"/9"/12"
  Semi-Open Coated

  Special Coated

 5"
 6"

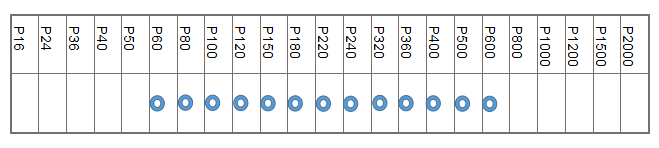

Main Grit





Item No.: KD8130



Grain

Base

Coating

Size

Availabel Holes

A/O



 D-weight Paper



Semi-Open Coated

Special Coated

2"/3"/4"/4.5"7"/9"/12"
Semi-Open Coated

Special Coated

5"
6"





 Main Grit



Item No.: KD8140



Grain

Base

Coating

Size

Availabel Holes

A/O

  D-weight Paper

  E-weight Paper

Semi-Open Coated

 2"/3"/4"/4.5"7"/9"/12"
Semi-Open Coated    5"
  6"



Main Grit




Parameter

Abrasvies Grain: Aluminum Oxide

Applications: Ideal for woodworking, metal finishing, and for plastic like materials.


General Application of Grit

Grit

Spec.

Applications

60#80#

Coarse

For removal and leveling of moderate surface imperfections

100#120#

Medium

For smoothing and light removal on bare surfaces

150#180#

Fine

For bare surface cleaning and finishing

220#240#320#400#

Very Fine

For primer and sealer sanding, and other very fine sanding of bare surfaces.

600#800#1000#1500#2000#

Extra Fine

Between coatings, primer and sealer sanding

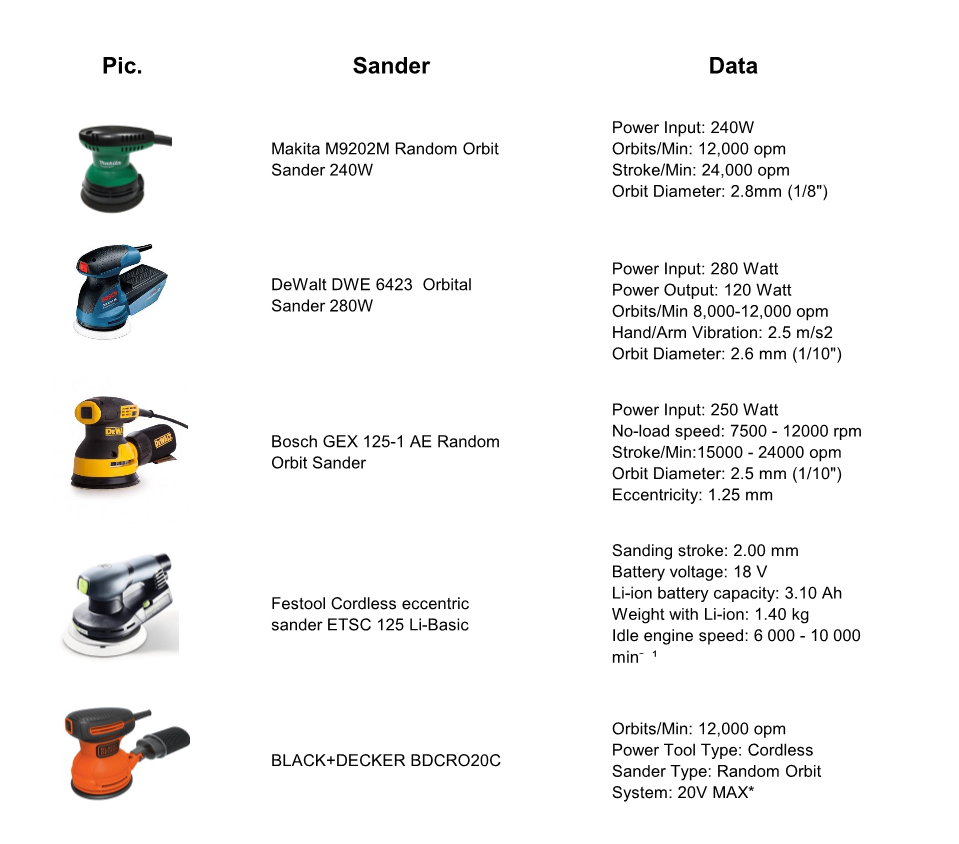

Recommended Sanders for 5" Hook & Loop Disc


Applicable Industries:


■ Chemical and processing industries ■ Fitting and container construction

■ Steelworks ■ Foundries ■Tool and mould construction

■ Pipeline construction ■Dockyards ■ Automotive industry

■ Steel construction, locksmiths

■ Aviation and aerospace, gas turbine construction and repair

■ Machine engineering


Introduction for Abrasives :


A/O: Alumimun Oxide

Aluminum Oxide grain which has high efficiency grinding performance. Cotton cloth base synchronous consumption fast, does not burn the workpiece.Glassfiber backing and plastic backing available.

With efficient grinding and polishing effect, the product is windly applied in the metal, stainless steel, wood, etc


C/O: Ceramic Oxide

With high quality ceramic grinding grain, which can quickly and efficiently finish the surface treatment of the workpiece. It has excellent effect for polishing the stainless steel.Glassfiber backing and plastic backing available.


Z/A: Zirconia Alumia

For grinding the stainless steel workpiece, the zirconia grain with outstanding effect and high efficiency. In addition to stainless steel, it is also used for the metals.Glassfiber backing available.


Safety Instructions

 Instructions:
1. Please try to choose operation indoors environment which without clutter phenomenon. The user should also concentrate on the operation to avoid an accident. If use it at outdoor, try to choose a quiet environment.
2. During the grinding process, the workpiece should be kept parallel to the working water level.

3. The user's power should be evenly distributed when operation. Never suddenly heavy and lightly.

4. Avoid moving or slipping the workpiece during grinding.


 Warning:

1. Must wear dustproof mask and goggles  when working.

2. Never exceed the maximum safe speed.

3. Discs must be mounted correctly and used with metal guards and goggles.
