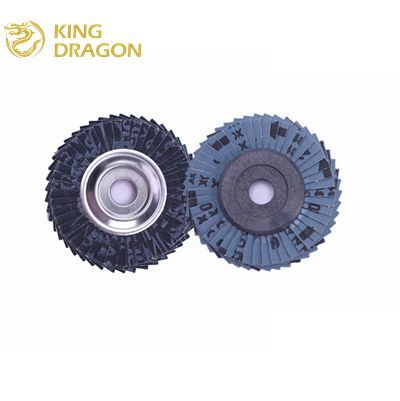

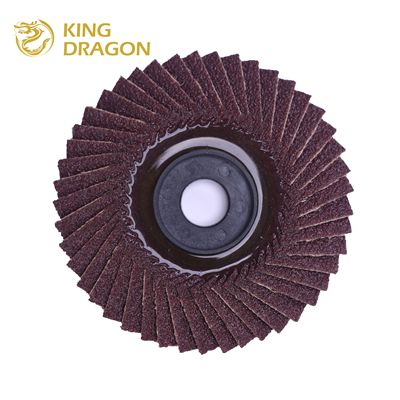

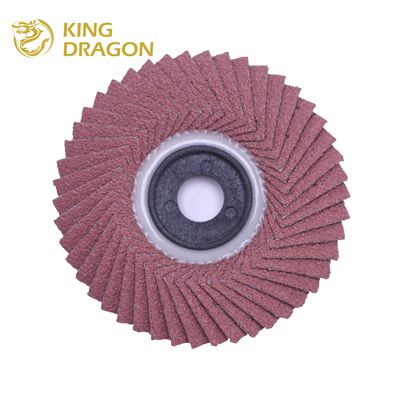

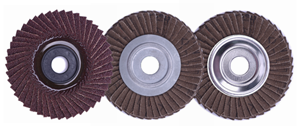

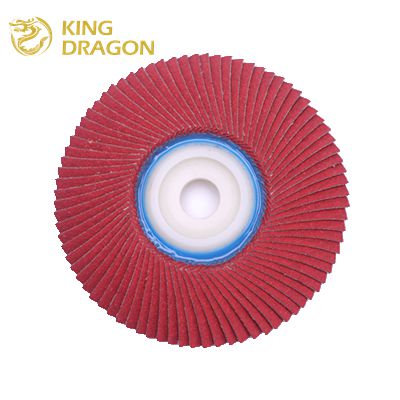

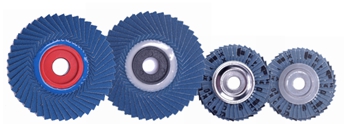

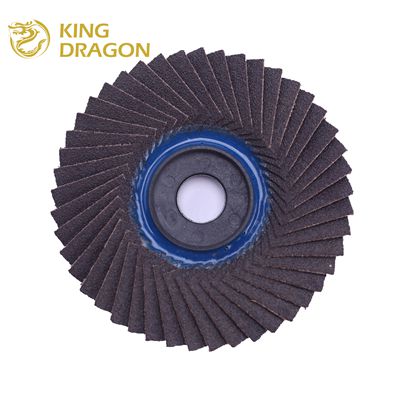

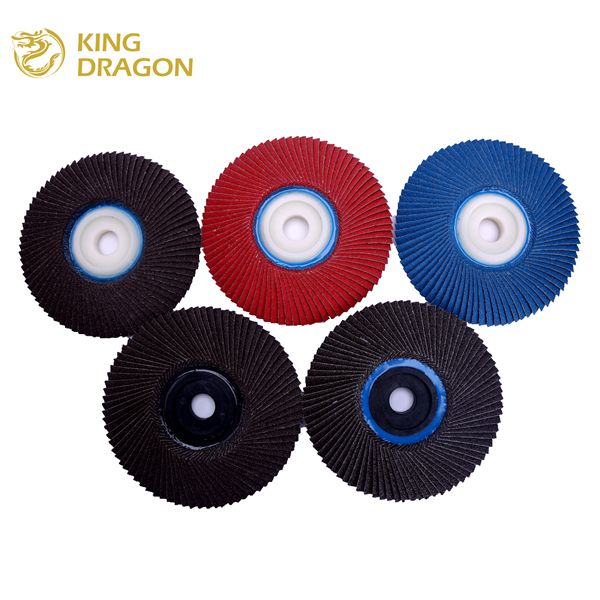

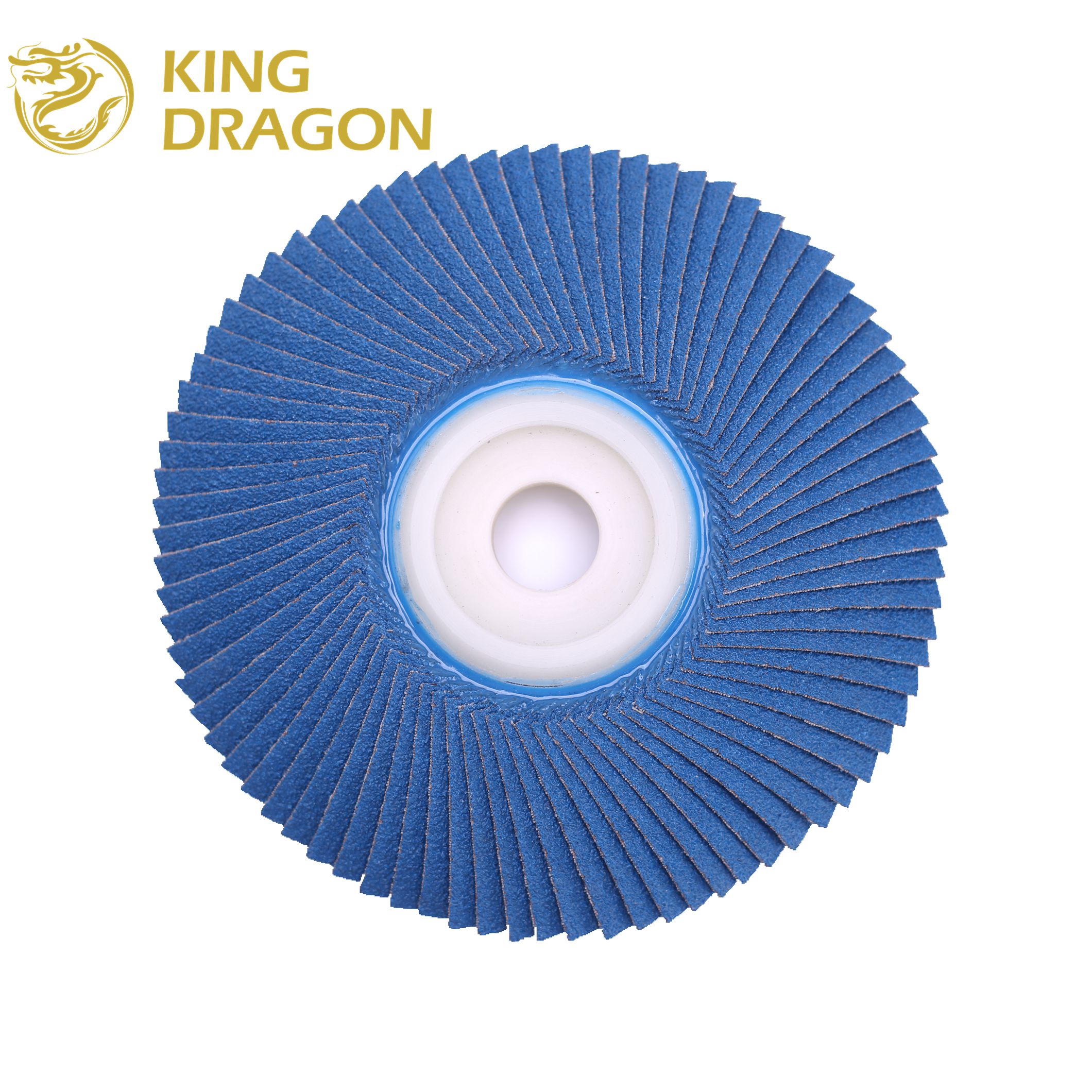

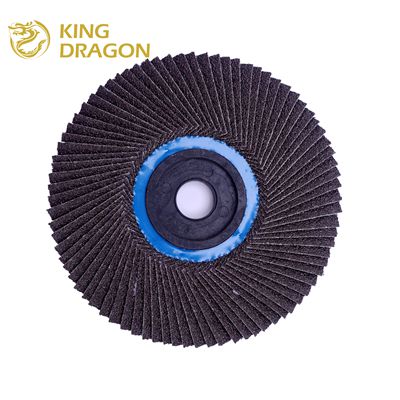

Flexible Disc

Outside Dia.:
100mm/115mm/125mm/150mm/180mm
Hole Dia.:
16mm/22mm
Base Appearance:
Plastic / Metal
Backing Type:
Grain Size:
P40 - P400
Facebook Twitter Google+ LinkedIn

Introduction

  Item No.: KD9210



Abrasive Grain

Base

Grit Gange

Dia.

Hole Dia.

Max R.P.M.

Types

Aluminum Oxide

Plastic

P40--P400

4" (100mm)

5/8" (16mm)

15200

4.5" (115mm)

7/8" (22mm)

13300

5" (125mm)

7/8" (22mm)

12200

6-7/10"(170mm)

7/8" (22mm)

8500





  Item No.: KD9220



Abrasive Grain

Base

Grit Gange

Dia.

Hole Dia.

Max R.P.M.

Types

Heated Aluminum Oxide



Plastic



P40--P400

4" (100mm)

5/8" (16mm)

15200



4.5" (115mm)

7/8" (22mm)

13300

5" (125mm)

7/8" (22mm)

12200

6-7/10"(170mm)

7/8" (22mm)

8500







 Item No.: KD9230



Abrasive Grain

Base

Grit Gange

Dia.

Hole Dia.

Max R.P.M.

Types

Zirconia Oxide







Plastic




P36--P120

4" (100mm)

5/8" (16mm)

15200



4.5" (115mm)

7/8" (22mm)

13300

5" (125mm)

7/8" (22mm)

12200

6-7/10"(170mm)

7/8" (22mm)

8500





Item No.: KD9240



Abrasive Grain

Base

Grit Gange

Dia.

Hole Dia.

Max R.P.M.

Types

Ceramic Oxide







Plastic




P36--P120

4" (100mm)

5/8" (16mm)

15200



4.5" (115mm)

7/8" (22mm)

13300

5" (125mm)

7/8" (22mm)

12200

6-7/10"(170mm)

7/8" (22mm)

8500





Item No.: KD9211



Abrasive Grain

Base

Base Type

Grit Gange

Dia.

Hole Dia.

Max R.P.M.

Disc Type

Aluminum Oxide

Metal



P40--P400

4" (100mm)

5/8" (16mm)

15200

4.5" (115mm)

7/8" (22mm)

13300

5" (125mm)

7/8" (22mm)

12200

6-7/10"(170mm)

7/8" (22mm)

8500



Item No.: KD9221



Abrasive Grain

Base

Base Type

Grit Gange

Dia.

Hole Dia.

Max R.P.M.

Disc Type

Heated    Aluminum Oxide

Metal

P40--P400

4" (100mm)

5/8" (16mm)

15200

4.5" (115mm)

7/8" (22mm)

13300

5" (125mm)

7/8" (22mm)

12200

6-7/10"(170mm)

7/8" (22mm)

8500









Item No.: KD9231



Abrasive Grain

Base

Base Type

Grit Gange

Dia.

Hole Dia.

Max R.P.M.

Disc Type

Zirconia Oxide

Metal

P36--P120

4" (100mm)

5/8" (16mm)

15200

4.5" (115mm)

7/8" (22mm)

13300

5" (125mm)

7/8" (22mm)

12200

6-7/10"(170mm)

7/8" (22mm)

8500




Parameter

Outside Dia.

Backing Dia.

Arbor Hole Dia.

Grain

Max.R.P.M.

Pcs/Ctn

G.W. (kgs)

N.W. (kgs)

Ctn Size(cm)

4" 100mm

75mm/88mm

90mm

5/8" 16mm

40#


15200

200

14

13

53X21X23

60-80#


15200

200

12

11

53X21X23

120-400#


15200

200

10

9

53X21X23





Outside Dia.

Backing Dia.

Arbor Hole Dia.



Grain



Max.R.P.M.

Pcs/Ctn

G.W. (kgs)

N.W. (kgs)

Ctn Size(cm)

 6-7/10" 170mm

80mm

 7/8" 22mm



40#



8500

60

16.5

15.5

56X37X21



60-80#



8500

60

14.5

13.5

56X37X21



120-400#



8500

60

12.5

11.5

56X37X21







Applicable Industries:


■ Chemical and processing industries ■ Fitting and container construction

■ Steelworks ■ Foundries ■Tool and mould construction

■ Pipeline construction ■Dockyards ■ Automotive industry

■ Steel construction, locksmiths

■ Aviation and aerospace, gas turbine construction and repair

■ Machine engineering










Grit Recommended:


Grit

Spec.

Applications

Suggested Progress

P60 P80

Coarse

For removal and leveling of moderate surface imperfections

■Derusting ■Deburring

P100-- P240

Medium

For smoothing and light removal on bare surfaces

■GrindingCleaning

P320 P400

Fine

For bare surface cleaning and finishing

Cleaning ■Polishing



Introduction for Abrasives :


A/O: Alumimun Oxide

Aluminum Oxide grain which has high efficiency grinding performance. Cotton cloth base synchronous consumption fast, does not burn the workpiece.Glassfiber backing and plastic backing available.

With efficient grinding and polishing effect, the product is windly applied in the metal, stainless steel, wood, etc


C/O: Ceramic Oxide

With high quality ceramic grinding grain, which can quickly and efficiently finish the surface treatment of the workpiece. It has excellent effect for polishing the stainless steel.Glassfiber backing and plastic backing available.


Z/A: Zirconia Alumia

For grinding the stainless steel workpiece, the zirconia grain with outstanding effect and high efficiency. In addition to stainless steel, it is also used for the metals.Glassfiber backing available.


Safety Instructions

Instructions:
1. Please try to choose operation indoors environment which without clutter phenomenon. The user should also concentrate on the operation to avoid an accident. If use it at outdoor, try to choose a quiet environment.
2. During the grinding process, the workpiece should be kept parallel to the working water level.

3. The user's power should be evenly distributed when operation. Never suddenly heavy and lightly.

4. Avoid moving or slipping the workpiece during grinding.



Warning:

1. Must wear dustproof mask and goggles when working.

2. Never exceed the maximum safe speed.

3. Discs must be mounted correctly and used with metal guards and goggles.
