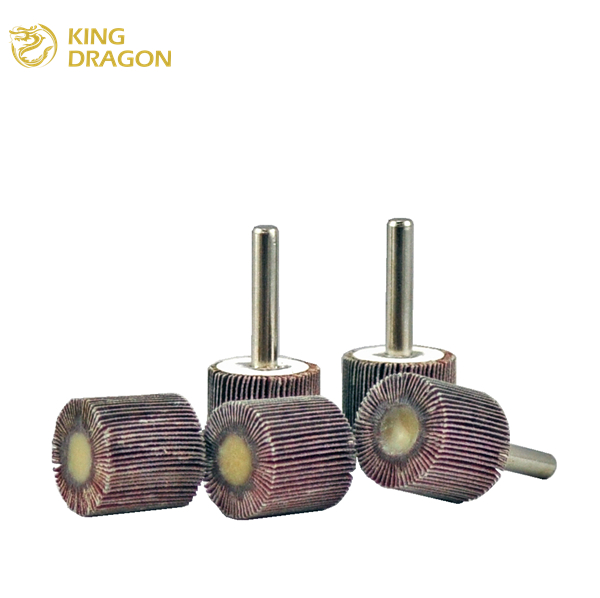

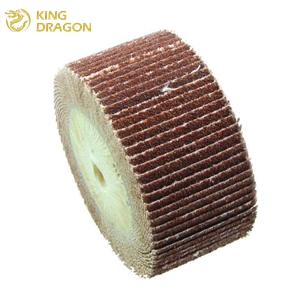

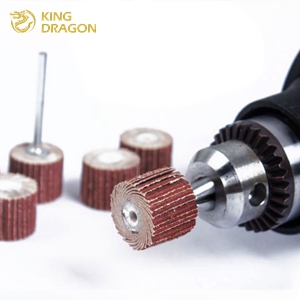

Flap Wheel with Shank

Abrasives:
Aluminum Oxide
Outside Dia.:
20mm/25mm/30mm/40mm/50mm/60mm/80mm/100mm
Grain Size:
P60 P80 P100 P120 P150 P180
P240 P320 P400 P600
Color:
Maroon
Facebook Twitter Google+ LinkedIn

Introduction

Item No.: KD9410



Abrasive Grain

Grit Gange

Dia.

Height

Dia. Of Shank

Max R.P.M.

Aluminum Oxide

P60--P600

15mm

10-30mm

3mm

18000

15mm

10-30mm

6mm

18000

20mm

8-30mm

6mm

18000

25mm

8-30mm

6mm

18000

30mm

5-40mm

6mm

18000

35mm

5-40mm

6mm

18000

40mm

5-50mm

6mm

18000

50mm

5-60mm

6mm

18000

60mm

5-60mm

6mm

18000

75mm

10-60mm

6mm

18000

80mm

10-60mm

6mm

18000

100mm

10-60mm

6mm

18000





Item No.: KD9411



Abrasive Grain

Grit Gange

Dia.

Height

Dia. Of Shank

Max R.P.M.

Aluminum Oxide

P60--P600

8mm

8mm

3mm

18000

10mm

10mm

3mm

18000

13mm

12mm

3mm

18000

15mm

14mm

3mm

18000

20mm

16mm

3mm

18000

20mm

16mm

6mm

18000

25mm

20mm

6mm

18000

30mm

20mm

6mm

18000

40mm

20mm

6mm

18000

25mm

25mm

3mm

18000


Parameter

Applicable Industries:


■ Chemical and processing industries ■ Fitting and container construction

■ Steelworks ■ Foundries ■Tool and mould construction

■ Pipeline construction ■Dockyards ■ Automotive industry

■ Steel construction, locksmiths

■ Aviation and aerospace, gas turbine construction and repair

■ Machine engineering


Grit Recommended:


Grit

Spec.

Applications

Suggested Progress

P60 P80

Coarse

For removal and leveling of moderate surface imperfections

■Derusting ■Deburring

P100-- P240

Medium

For smoothing and light removal on bare surfaces

■GrindingCleaning

P320 P400

Fine

For bare surface cleaning and finishing

Cleaning ■Polishing



Introduction for Abrasives :


A/O: Alumimun Oxide

Aluminum Oxide grain which has high efficiency grinding performance. Cotton cloth base synchronous consumption fast, does not burn the workpiece.Glassfiber backing and plastic backing available.

With efficient grinding and polishing effect, the product is windly applied in the metal, stainless steel, wood, etc


C/O: Ceramic Oxide

With high quality ceramic grinding grain, which can quickly and efficiently finish the surface treatment of the workpiece. It has excellent effect for polishing the stainless steel.Glassfiber backing and plastic backing available.


Z/A: Zirconia Alumia

For grinding the stainless steel workpiece, the zirconia grain with outstanding effect and high efficiency. In addition to stainless steel, it is also used for the metals.Glassfiber backing available.


Safety Instructions

 Instructions:
1. Please try to choose operation indoors environment which without clutter phenomenon. The user should also concentrate on the operation to avoid an accident. If use it at outdoor, try to choose a quiet environment.
2. During the grinding process, the workpiece should be kept parallel to the working water level.

3. The user's power should be evenly distributed when operation. Never suddenly heavy and lightly.

4. Avoid moving or slipping the workpiece during grinding.





Warning:

1. Must wear dustproof mask and goggles  when working.

2. Never exceed the maximum safe speed.

3. Discs must be mounted correctly and used with metal guards and goggles.
