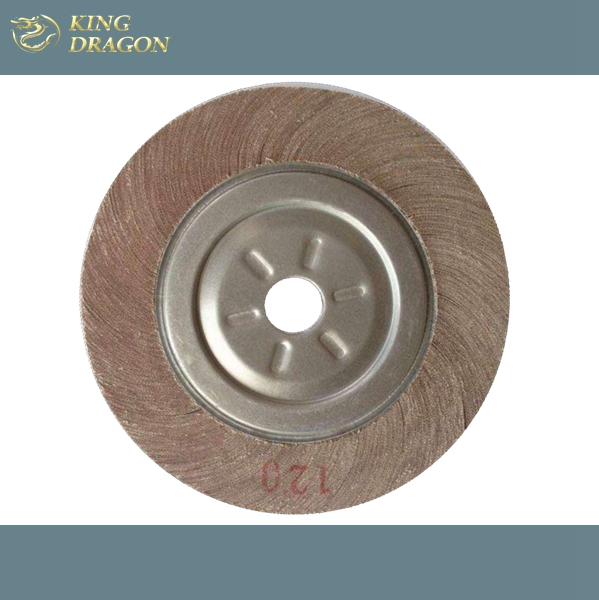

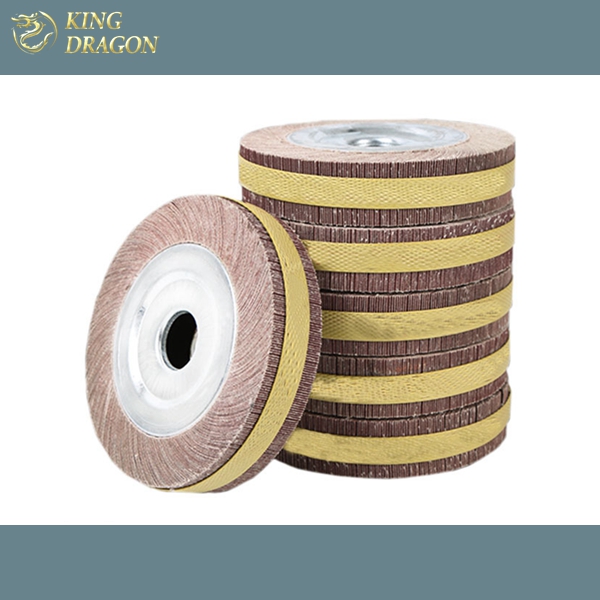

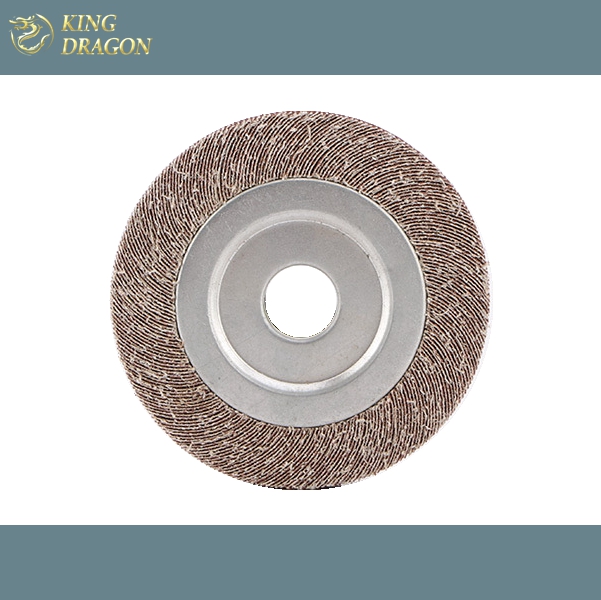

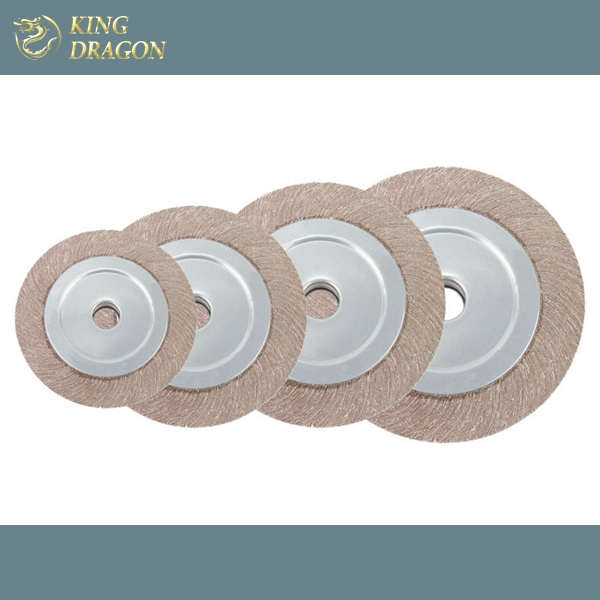

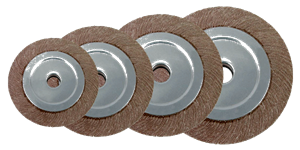

Flap Wheel

Abrasives:
Aluminum Oxide
Calcinated A/O
Outside Dia.:
150mm/200mm/250mm/300mm/350mm
Grain Size:
P40 P60 P80 P100 P120 P150 P180
P240 P320 P400 P600 P800 P1000
Color:
Maroon
Facebook Twitter Google+ LinkedIn

Introduction

Item No.: KD9510



Abrasive Grain

Core Base

Grit Gange

Aluminum Oxide

Metal

P40--P1000



Spec.(mm)

Max R.P.M.

Spec.(mm)

Max R.P.M.

Spec.(mm)

Max R.P.M.

100x25x16

3000

250x40x25.4/32

3000

300x35x25.4/32

2000

125x25x16

3000

250x40x100

3000

300x40x25.4/32

2000

150x25x25.4

3000

250x40x180

3000

300x50x25.4/32

2000

200x25x25.4/32

3000

250x40x240

3000

310x60x170

2000

   200x30x25.4/32

3000

270x40x25.4/32

3000

310x80x170

1900

200x80x25

3000

300x10x25.4/32

2000

350x50x170

1900

200x450x60

3000

300x25x25.4/32

2000

400x80x170

1900



























Item No.: KD9520



Abrasive Grain

Core Base

Grit Gange

Calcinated Oxide

Metal

P40--P1000



Spec.(mm)

Max R.P.M.

Spec.(mm)

Max R.P.M.

Spec.(mm)

Max R.P.M.

100x25x16

3000

250x40x25.4/32

3000

300x35x25.4/32

2000

125x25x16

3000

250x40x100

3000

300x40x25.4/32

2000

150x25x25.4

3000

250x40x180

3000

300x50x25.4/32

2000

200x25x25.4/32

3000

250x40x240

3000

310x60x170

2000

   200x30x25.4/32

3000

270x40x25.4/32

3000

310x80x170

1900

200x80x25

3000

300x10x25.4/32

2000

350x50x170

1900

200x450x60

3000

300x25x25.4/32

2000

400x80x170

1900














Parameter

Applicable Industries:


■ Chemical and processing industries ■ Fitting and container construction

■ Steelworks ■ Foundries ■Tool and mould construction

■ Pipeline construction ■Dockyards ■ Automotive industry

■ Steel construction, locksmiths

■ Aviation and aerospace, gas turbine construction and repair

■ Machine engineering










Grit Recommended:


Grit

Spec.

Applications

Suggested Progress

P60 P80

Coarse

For removal and leveling of moderate surface imperfections

■Derusting ■Deburring

P100-- P240

Medium

For smoothing and light removal on bare surfaces

■GrindingCleaning

P320 P400

Fine

For bare surface cleaning and finishing

Cleaning ■Polishing



Introduction for Abrasives :


A/O: Alumimun Oxide

Aluminum Oxide grain which has high efficiency grinding performance. Cotton cloth base synchronous consumption fast, does not burn the workpiece.Glassfiber backing and plastic backing available.

With efficient grinding and polishing effect, the product is windly applied in the metal, stainless steel, wood, etc


C/O: Ceramic Oxide

With high quality ceramic grinding grain, which can quickly and efficiently finish the surface treatment of the workpiece. It has excellent effect for polishing the stainless steel.Glassfiber backing and plastic backing available.


Z/A: Zirconia Alumia

For grinding the stainless steel workpiece, the zirconia grain with outstanding effect and high efficiency. In addition to stainless steel, it is also used for the metals.Glassfiber backing available.




Safety Instructions

 Instructions:
1. Please try to choose operation indoors environment which without clutter phenomenon. The user should also concentrate on the operation to avoid an accident. If use it at outdoor, try to choose a quiet environment.
2. During the grinding process, the workpiece should be kept parallel to the working water level.

3. The user's power should be evenly distributed when operation. Never suddenly heavy and lightly.

4. Avoid moving or slipping the workpiece during grinding.





Warning:

1. Must wear dustproof mask and goggles  when working.

2. Never exceed the maximum safe speed.

3. Discs must be mounted correctly and used with metal guards and goggles.
