Surface Conditioning Disc

Outside Dia.:
100mm/115mm/125mm
Hole Dia.:
16mm/22mm
Backing Appearance:
Glassfiber with Black Paper
Glassfiber with Non-woven Cloth
Glassfiber with Net
Backing Type:

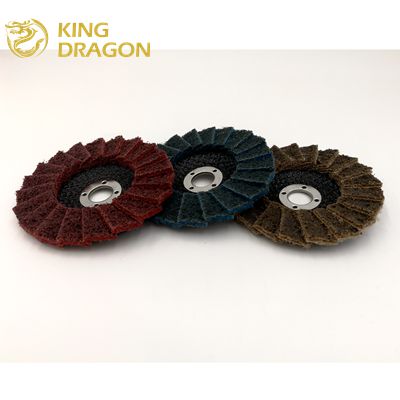

Grain Size:
Coarse-Brown
Medium-Maroon
Fine-Green
Facebook Twitter Google+ LinkedIn

Introduction

 Item No.: KD7610


Abrasive Grain

 Type

Color-Grit

Outer Dia.

Max R.P.M.

Aluminum Oxide

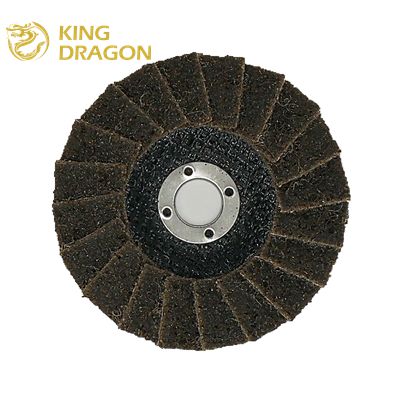

Brown- Coarse



4”(100mm)

15200

4.5” (115mm)

13300

5” (125mm)

12200




 Item No.: KD7620


Abrasive Grain

 Type

Color-Grit

Outer Dia.

Max R.P.M.

Aluminum Oxide

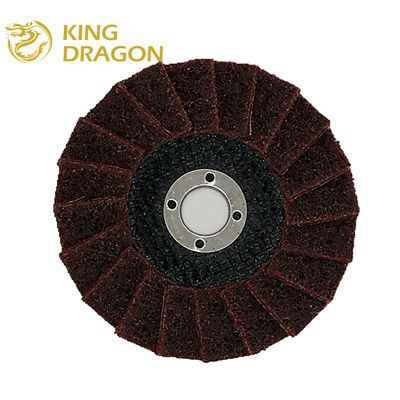

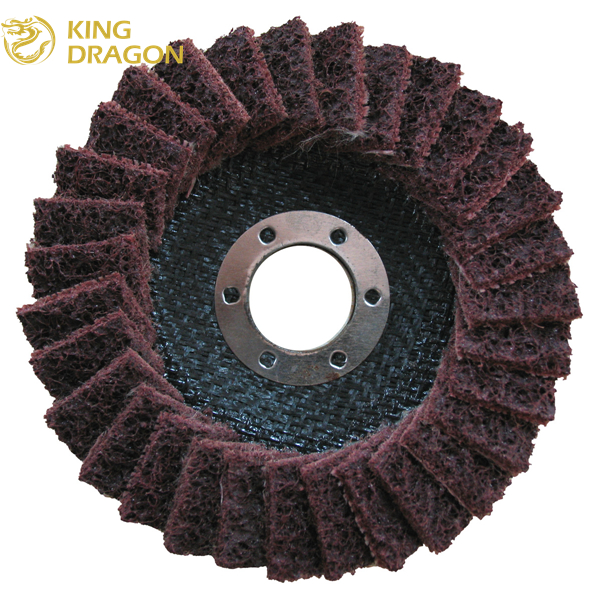

Maroon- Medium



4”(100mm)

15200

4.5” (115mm)

13300

5” (125mm)

12200



 Item No.: KD7630

Abrasive Grain

 Type

Color-Grit

Outer Dia.

Max R.P.M.

Aluminum Oxide





Green- Fine



4”(100mm)

15200

4.5” (115mm)

13300

5” (125mm)

12200



Parameter



Outside  Dia.    Backing Dia.

 Arbor  Hole Dia.

 Grain

  Max.R.P.M. Pcs/Ctn



 G.W. (kgs)

N.W. (kgs)

Ctn Size(cm)
  4" 100mm

   75mm/88mm

        90mm

5/8" 16mm

Coarse--Brown

15200       200           14

13

58X24X30

Medium--Maroon

15200

200

13

12

58X24X30

Fine--Blue

15200

200

12

11

58X24X30

4 1/2" 115mm

105mm

7/8" 22mm

     Coarse--Brown

13300

200

15

14

64X26X35

      Medium--Maroon

13300

200

14

13

64X26X35

           Fine--Blue

13300

200

13

12

64X26X35

5" 125mm

115mm

7/8" 22mm

      Coarse -- Brown

12200

200

18

17

69X28X30

      Medium-Maroon

12200

200

17

16

69X28X30

           Fine-Blue

12200

200

16

15

69X28X30



The products can use in following industries:
■ Processing industries
■ Steelworks
■ Foundries
■Tool and mould construction
■ Automotive industry
■ Steel construction, locksmiths
■ Aviation and aerospace
■ Machine engineering


Applications:
■ Grinding
■ Brushing
■ Polishing
■ Cleaning
■ Derusting
■ Matt finishing



   Grit Recommended:


Grit

Spec.

Applications

Suggested Progress

P60 P80

Coarse

For removal and leveling of moderate surface imperfections

■Derusting ■Deburring

P100-- P240

Medium

For smoothing and light removal on bare surfaces

■GrindingCleaning

P320 P400

Fine

For bare surface cleaning and finishing

Cleaning ■Polishing



Introduction for Abrasives :


A/O: Alumimun Oxide

Aluminum Oxide grain which has high efficiency grinding performance. Cotton cloth base synchronous consumption fast, does not burn the workpiece.Glassfiber backing and plastic backing available.

With efficient grinding and polishing effect, the product is windly applied in the metal, stainless steel, wood, etc


C/O: Ceramic Oxide

With high quality ceramic grinding grain, which can quickly and efficiently finish the surface treatment of the workpiece. It has excellent effect for polishing the stainless steel.Glassfiber backing and plastic backing available.


Z/A: Zirconia Alumia

For grinding the stainless steel workpiece, the zirconia grain with outstanding effect and high efficiency. In addition to stainless steel, it is also used for the metals.Glassfiber backing available.


Safety Instructions



Instructions:
1. Please try to choose operation indoors environment which without clutter phenomenon. The user should also concentrate on the operation to avoid an accident. If use it at outdoor, try to choose a quiet environment.
2. During the grinding process, the workpiece should be kept parallel to the working water level.

3. The user's power should be evenly distributed when operation. Never suddenly heavy and lightly.

4. Avoid moving or slipping the workpiece during grinding.



Warning:

1. Must wear dustproof mask and goggles when working.

2. Never exceed the maximum safe speed.

3. Discs must be mounted correctly and used with metal guards and goggles.
