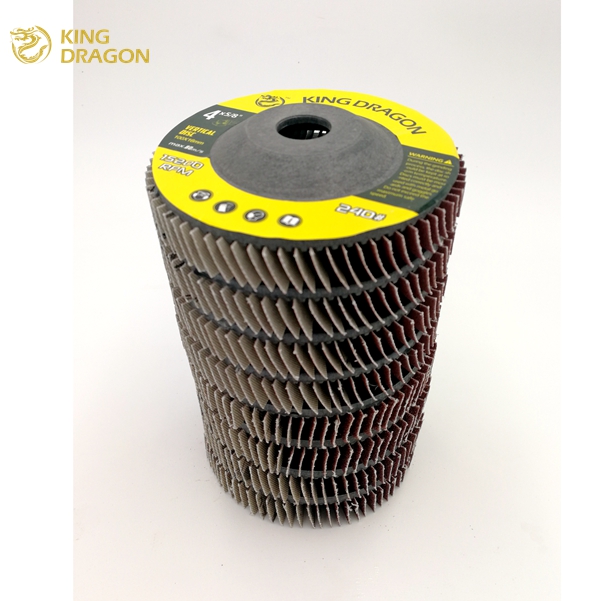

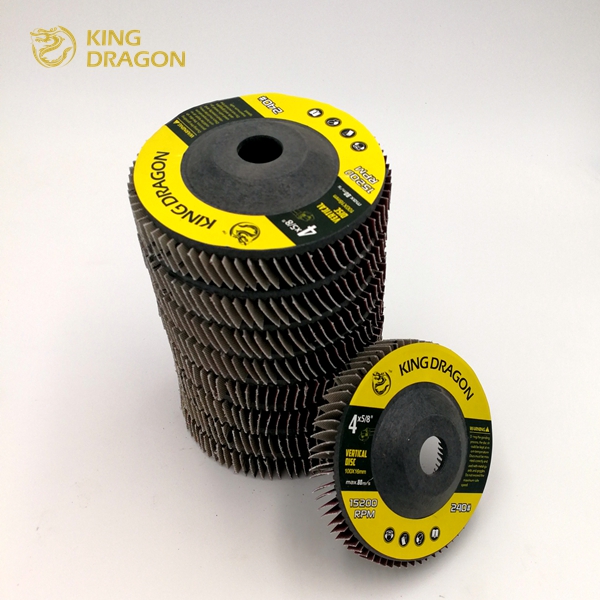

Vertical Disc

Outside Dia.:
100mm
Hole Dia.:
16mm
Backing Appearance:
Plastic Backing
Backing Type:
Grain Size:
40# - 360#
Color:
Maroon
Facebook Twitter Google+ LinkedIn

Introduction

  Item No.: KD9310



Abrasive Grain

Base

Grit Gange

Dia.

Hole Dia.

Max R.P.M.

Types

Aluminum Oxide

Plastic

P40--P400

4" (100mm)

5/8" (16mm)

15200




Parameter



   Backing Dia.

 Arbor   Hole Dia.

Grain

  Max.R.P.M. Pcs/Ctn



 G.W. (kgs)

N.W. (kgs)

Ctn Size(cm)

        88mm /

        90mm

     5/8" 16mm

40#

        15200

      200

          14

13

55X40X25

60-80#

15200

200

13

12

 55X40X25

120-400#

15200

200

12

11

 55X40X25



Applicable Industries:


■ Chemical and processing industries ■ Fitting and container construction

■ Steelworks ■ Foundries ■Tool and mould construction

■ Pipeline construction ■Dockyards ■ Automotive industry

■ Steel construction, locksmiths

■ Aviation and aerospace, gas turbine construction and repair

■ Machine engineering




Grit Recommended:


Grit

Spec.

Applications

Suggested Progress

P60 P80

Coarse

For removal and leveling of moderate surface imperfections

■Derusting ■Deburring

P100-- P240

Medium

For smoothing and light removal on bare surfaces

■GrindingCleaning

P320 P400

Fine

For bare surface cleaning and finishing

Cleaning ■Polishing



Introduction for Abrasives :


A/O: Alumimun Oxide

Aluminum Oxide grain which has high efficiency grinding performance. Cotton cloth base synchronous consumption fast, does not burn the workpiece.Glassfiber backing and plastic backing available.

With efficient grinding and polishing effect, the product is windly applied in the metal, stainless steel, wood, etc


C/O: Ceramic Oxide

With high quality ceramic grinding grain, which can quickly and efficiently finish the surface treatment of the workpiece. It has excellent effect for polishing the stainless steel.Glassfiber backing and plastic backing available.


Z/A: Zirconia Alumia

For grinding the stainless steel workpiece, the zirconia grain with outstanding effect and high efficiency. In addition to stainless steel, it is also used for the metals.Glassfiber backing available.


Safety Instructions

 Instructions:
1. Please try to choose operation indoors environment which without clutter phenomenon. The user should also concentrate on the operation to avoid an accident. If use it at outdoor, try to choose a quiet environment.
2. During the grinding process, the workpiece should be kept parallel to the working water level.

3. The user's power should be evenly distributed when operation. Never suddenly heavy and lightly.

4. Avoid moving or slipping the workpiece during grinding.





Warning:

1. Must wear dustproof mask and goggles  when working.

2. Never exceed the maximum safe speed.

3. Discs must be mounted correctly and used with metal guards and goggles.
