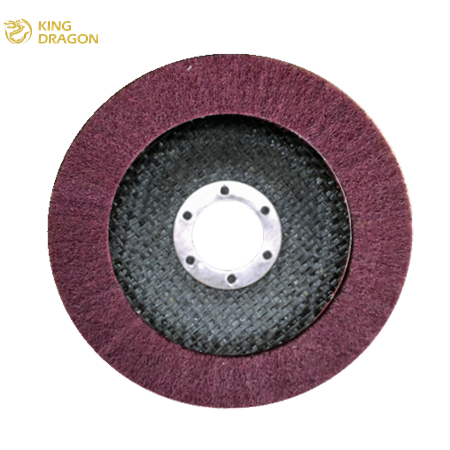

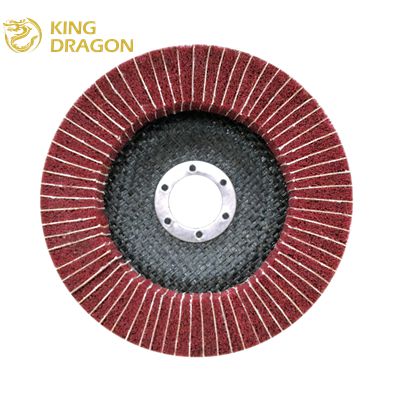

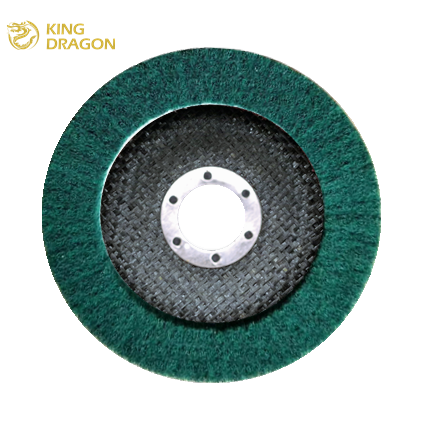

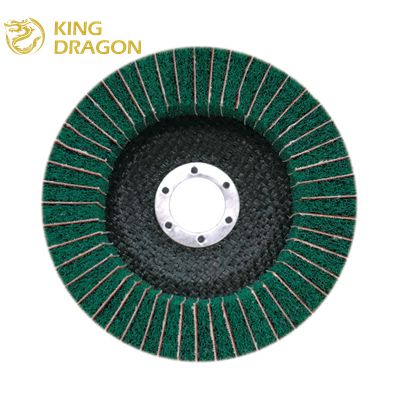

Vertical Disc

Outside Dia.:
100mm/115mm/125mm/150mm/180mm
Base Appearance:
Glassfiber with Black Paper
Backing Type:
Grain Size:
Medium-Maroon
Fine-Green
Facebook Twitter Google+ LinkedIn

Introduction

 Item No.: KD7320



  Abrasive

     Grain

       Type

Color-Grit

Outer Dia.

Arbor Hole Dia.

Thickness

Max R.P.M.



Aluminum

    Oxide



        With

Abrasive Flaps



Maroon-Medium



4(100mm)

16mm

10±2mm

12000

4-1/2"(115mm)

22mm

10±2mm

12000

5(125mm)

22mm

10±2mm

12000









 Item No.: KD7321



Abrasive Grain

 Type

Color-Grit

Outer Dia.

Arbor Hole Dia.

Thickness

Max R.P.M.



Aluminum Oxide



Without

Abrasive Flaps



Maroon-Medium



4(100mm)

16mm

10±2mm

12000

4-1/2"(115mm)

22mm

10±2mm

12000

5(125mm)

22mm

10±2mm

12000







Item No.: KD7330





  Abrasive

    Grain

        Type

Color-Grit

Outer Dia.

Arbor Hole Dia.

Thickness

Max R.P.M.



Aluminum

   Oxide



        With

Abrasive Flaps



Green -Fine



4(100mm)

16mm

10±2mm

12000

4-1/2"(115mm)

22mm

10±2mm

12000

5(125mm)

22mm

10±2mm

12000







 Item No.: KD7331



Abrasive Grain

 Type

Color-Grit

Outer Dia.

Arbor Hole Dia.

Thickness

Max R.P.M.



Aluminum Oxide



Without

 Abrasive Flaps



Green -Fine



4(100mm)

16mm

10±2mm

12000

4-1/2"(115mm)

22mm

10±2mm

12000

5(125mm)

22mm

10±2mm

12000





The products can use in following industries:
■ Processing industries
■ Steelworks
■ Foundries
■Tool and mould construction
■ Automotive industry
■ Steel construction, locksmiths
■ Aviation and aerospace
■ Machine engineering



Applications:
■ Grinding
■ Brushing
■ Polishing
■ Cleaning
■ Derusting
■ Matt finishing

Parameter





Outside Dia.



 Backing Dia.

 Arbor Hole Dia.

 Thickness

 Color/Grit

4" 100mm

75mm/88mm

90mm



5/8" 16mm



10±2mm





Maroon-Medium

Green-Fine





4-1/2" 115mm

105mm

7/8" 22mm



10±2mm



5" 125mm

115mm

7/8" 22mm



10±2mm






Applicable Industries:


■ Chemical and processing industries ■ Fitting and container construction

■ Steelworks ■ Foundries ■Tool and mould construction

■ Pipeline construction ■Dockyards ■ Automotive industry

■ Steel construction, locksmiths

■ Aviation and aerospace, gas turbine construction and repair

■ Machine engineering




 Grit Recommended:


Grit

Spec.

Applications

Suggested Progress

P60 P80

Coarse

For removal and leveling of moderate surface imperfections

■Derusting ■Deburring

P100-- P240

Medium

For smoothing and light removal on bare surfaces

■GrindingCleaning

P320 P400

Fine

For bare surface cleaning and finishing

Cleaning ■Polishing



Introduction for Abrasives :


A/O: Alumimun Oxide

Aluminum Oxide grain which has high efficiency grinding performance. Cotton cloth base synchronous consumption fast, does not burn the workpiece.Glassfiber backing and plastic backing available.

With efficient grinding and polishing effect, the product is windly applied in the metal, stainless steel, wood, etc


C/O: Ceramic Oxide

With high quality ceramic grinding grain, which can quickly and efficiently finish the surface treatment of the workpiece. It has excellent effect for polishing the stainless steel.Glassfiber backing and plastic backing available.


Z/A: Zirconia Alumia

For grinding the stainless steel workpiece, the zirconia grain with outstanding effect and high efficiency. In addition to stainless steel, it is also used for the metals.Glassfiber backing available.


Safety Instructions

Instructions:
1. Please try to choose operation indoors environment which without clutter phenomenon. The user should also concentrate on the operation to avoid an accident. If use it at outdoor, try to choose a quiet environment.
2. During the grinding process, the workpiece should be kept parallel to the working water level.

3. The user's power should be evenly distributed when operation. Never suddenly heavy and lightly.

4. Avoid moving or slipping the workpiece during grinding.



Warning:

1. Must wear dustproof mask and goggles when working.

2. Never exceed the maximum safe speed.

3. Discs must be mounted correctly and used with metal guards and goggles.
